NCTS THERMAL RECIPT PRINTERS

NCTS Printers Data Sheets

NCTS-NPR4 NPR5 Download
NCTS-NPRWB NPR3W Download

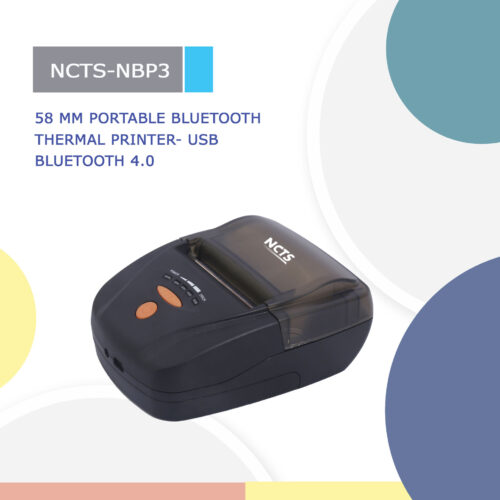

NCTS-NBP3 Download

NCTS-NBP4 Download
NCTS-RP1 Download

NCTS-RP1W  Download
NCTS RBP2 DATA SHEET Download

1-NCTS-RBP1 Portable Thermal Receipt Printer

Product description:

NCTS-RPB1 is a new portable printer designed for the printing service of mobile bill printing technology, simple fashion design, and strong technology. Integrated into a number of cutting-edge technologies: intelligent power saving and power control, variable speed printing, printing density intelligent adjustable, the real combination of technology and practical.

Product performance:

• Support 1.D,2.D bar code printing

• While compatible with Windows, Linux, Android and IOS systems

• Super battery life, with smart power saving and power consumption control functions , to ensure longer print time

• Support USB, COM and Bluetooth communications

• Support sound and light reminder when lack of paper, printing abnormal

• Anti fall of 1.5M cement floor

Application:

Warehousing, transportation, logistics, supermarket, tobacco, hydro power reading, mobile government affairs, mobile police, postal and other industries

2-NCTS-RPB2 80mm Mini Portable Thermal Receipt Print

Products Features：

• Business style design, more fashion

• Support 1.D,2.D bar code printing

• While compatible with Windows, Linux, Android and IOS systems

• With 2500mAh rechargeable lithium polymer battery, super battery lasting time, with smart power saving and power consumption control functions, to ensure longer print time

• Support USB, COM, Bluetooth,Wi-Fi ,USB+Bluetooth(V2.0),USB+Bluetooth(V3.0+V4.0)

• Special power remaining indicator light, to control the printer power at any time

• Support sound and light reminder when lack of paper or printing abnormal

• Anti fall of 1.5M cement floor

Application:

Warehousing, transportation, logistics, supermarket, tobacco, hydro power reading, mobile government affairs, mobile police, postal and other industries

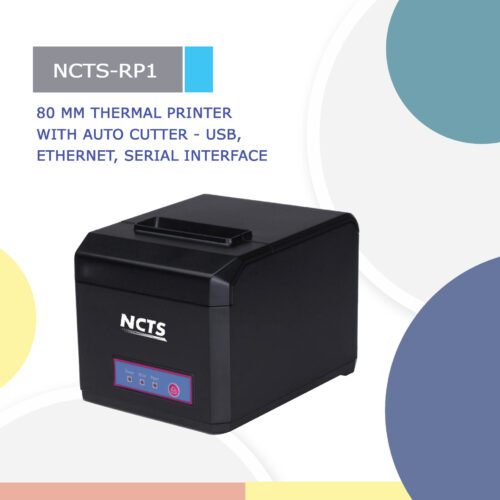

3-NCTS-RP1 Thermal Receipt Printer

Product description:

NCTS-RP1 is a high quality thermal printer Tech.designed for network and kitchen printing.. 300MM/S of high speed printing; excellent waterproof, oil proof, dust proof structure design; rich interface selection including Wi-Fi, GPRS ; print status real-time monitoring and large input buffer, to avoid losing any bills, embedded IE server, configure printers more convenient, so many leading technology beyond the performance of similar products, allowing you to enjoy high-quality, free from worry print experience.

Product performance:

• 300 mm / second ultra high-speed printing, improve the printing efficiency;

• Excellent waterproof, anti – oil, anti-dust structure design;

• Support wall hanging function, meet the special environment printing;

• Movable baffle design, support 80MM, 58MM different width of the paper roll printing;

• Support 80MM large diameter roll;

• Support kitchen printing and Internet printing;

• Support printer monitoring function, to avoid losing bills;

• Using 100M Ethernet card, connect printer faster, to avoid losing bills;

• Recover printing after network disconnection, to avoid losing bills;

• 2048K super input buffer, to avoid losing bills;

• Support LOGO Graphical download and print;

• Support 1D,2D bar code printing;

• Support order come remind and error alarm;

• Support black mark orientation and re-print;

• GB18030 large font;

• Support Multi language printing;

• Rich interface:Internet+USB+COM;Internet+USB+WIFI;USB+GPRS;USB+COM;USB+Bluetooth;

• Built-in WEB server, configure printer by IE browser;

• Compatible with ESC/POS print instruction mode;

• Support Windows,Linux,Android and IOS system printing;

Application:

Shopping malls, restaurants, stores, warehousing, taxation, banking, medical, postal

4-NCTS-RP1W Thermal Receipt Printer

Product description:

NCTS-RP1W is a high quality thermal printer Tech.designed for network and kitchen printing.. 300MM/S of high speed printing; excellent waterproof, oil proof, dust proof structure design; rich interface selection including Wi-Fi, GPRS ; print status real-time monitoring and large input buffer, to avoid losing any bills, embedded IE server, configure printers more convenient, so many leading technology beyond the performance of similar products, allowing you to enjoy high-quality, free from worry print experience.

Product performance:

• 300 mm / second ultra high-speed printing, improve the printing efficiency;

• Excellent waterproof, anti – oil, anti-dust structure design;

• Support wall hanging function, meet the special environment printing;

• Movable baffle design, support 80MM, 58MM different width of the paper roll printing;

• Support 80MM large diameter roll;

• Support kitchen printing and Internet printing;

• Support printer monitoring function, to avoid losing bills;

• Using 100M Ethernet card, connect printer faster, to avoid losing bills;

• Recover printing after network disconnection, to avoid losing bills;

• 2048K super input buffer, to avoid losing bills;

• Support LOGO Graphical download and print;

• Support 1D,2D bar code printing;

• Support order come remind and error alarm;

• Support black mark orientation and re-print;

• GB18030 large font;

• Support Multi language printing;

• Rich interface:Internet+USB+COM;Internet+USB+WIFI;USB+GPRS;USB+COM;USB+Bluetooth;

• Built-in WEB server, configure printer by IE browser;

• Compatible with ESC/POS print instruction mode;

• Support Windows,Linux,Android and IOS system printing;

Application:

Shopping malls, restaurants, stores, warehousing, taxation, banking, medical, postal

5-NCTS-RP2 Thermal Receipt Printer

Product description:

NCTS-RP2 is a high quality thermal printer Tech.designed for network and kitchen printing.. 300MM/S of high speed printing; excellent waterproof, oil proof, dust proof structure design; rich interface selection including Wi-Fi, GPRS ; print status real-time monitoring and large input buffer, to avoid losing any bills, embedded IE server, configure printers more convenient, so many leading technology beyond the performance of similar products, allowing you to enjoy high-quality, free from worry print experience.

Product performance:

• 300 mm / second ultra high-speed printing, improve the printing efficiency;

• Excellent waterproof, anti – oil, anti-dust structure design;

• Support wall hanging function, meet the special environment printing;

• Movable baffle design; support 80MM, 58MM different width of the paper roll printing;

• Support 80MM large diameter roll;

• Support kitchen printing and Internet printing

• Support printer monitoring function, to avoid losing bills

• Using 100M Ethernet card, connect printer faster, to avoid losing bills

• Recover printing after network disconnection, to avoid losing bills

• 2048K super input buffer, to avoid losing bills

• Support LOGO Graphical download and print

• Support 1D,2D bar code printing

• Support order come remind and error alarm

• Support black mark orientation and re-print

• GB18030Large font

• Support Multi language printing

• Rich-interface:Internet(100M)+USB+COM;Internet(100M)+USB+WIFI;USB+GPRS;USB+COM;USB+Bluetooth

• Built-in WEB server, configure printer by IE browser

• Compatible with ESC/POS print instruction mode

• Support Windows,Linux,Android and IOS system printing

Application

Shopping malls, restaurants, stores, warehousing, taxation, banking, medical, postal

5-NCTS-NPR3W (WHITE) & NCTS-NPR3B (BLACK)

NCTS-NPR3W/B printer is a new line thermal printer, it features in fast speed, low noise, high reliability, perfect quality and ribbon needless, avoiding the vexation of regular maintenance.

NCTS-NPR3W/B printer is small in outline dimension, simple with operation, and extensive with application, it is especially suitable for commercial cash register, PC-POS, POS bank and all kinds of related industries.

 Print Performance

• Print method: direct thermal

• Print paper width: 79.5±0.5mm

• Print density: 8 dots/mm, 576 dots/line

• Print speed: approx.250mm／sec.

• Reliability (1)Print head life: 150km  Using condition:  ＊Print 12 × 24 ASCII characters, print 50 lines each time, intermittent print repeatedly  ＊Each dot-line printing at the same time should not exceed 25%, each character line and one dot vertical printing repeatedly should not exceed 11 times   ＊Use specified thermal paper （2）Cutter life: 1,000,000 cuts  Using condition: less than 30 cuts/minute

• Valid print width: 72mm

6-NCTS RECEIPT PRINTER USB INTERFACE NCTS-NPR4

7-NCTS RECEIPT PRINTER NETWORK INTERFACE NCTS-NPR5

1 YEAR WARRANTY

NCTS-NPR4/NPR5 printer is a new line thermal printer, it features in fast speed, low noise, high reliability, perfect quality and ribbon needless, avoiding the vexation of regular maintenance.

NCTS-NPR4/NPR5 printer is small in outline dimension, simple with operation, and extensive with application, it is especially suitable for commercial cash register, PC-POS, POS bank and all kinds of related industries.

• Print method: direct thermal

• Print paper width: 79.5±0.5mm

• Print density: 8 dots/mm, 576 dots/line

• Print speed: approx.250mm／sec.

• Reliability :Print head life: 150km

＊Print 12 × 24 ASCII characters, print 50 lines each time, intermittent print repeatedly

＊Each dot-line printing at the same time should not exceed 25%, each character line and one dot vertical printing repeatedly should not exceed 11 times

＊Use specified thermal paper,（2）Cutter life: 1,000,000 cuts

Using condition: less than 30 cuts/minute,Valid print width: 72mm

8-PRINTER PORTABLE RECEIPT BLUETOOTH    NCTS-RBP3

1 YEAR WARRANTY

Product description:

NCTS-RBP3 is a new portable printer designed for the printing service of mobile bill printing technology, simple fashion design, and strong technology. Integrated into a number of cutting-edge technologies: intelligent power saving and power control, variable speed printing, printing density intelligent adjustable, the real combination of technology and practical.

Product performance:

• Support 1.D,2.D bar code printing

• While compatible with Windows, Linux, Android and IOS systems

• Super battery life, with smart power saving and power consumption control functions , to ensure longer print time

• Support USB, COM and Bluetooth communications

• Support sound and light reminder when lack of paper, printing abnormal

• Anti fall of 1.5M cement floor

Application:

Warehousing, transportation, logistics, supermarket, tobacco, hydro power reading, mobile government affairs, mobile police, postal and other industries

Printer Parameters:

9-PRINTER PORTABLE RECEIPT BLUETOOTH NCTS-RBP4

1 YEAR WARRANTY

Product description:

NCTS-RBP4 is a new portable printer designed for the printing service of mobile bill printing technology, simple fashion design, and strong technology. Integrated into a number of cutting-edge technologies: intelligent power saving and power control, variable speed printing, printing density intelligent adjustable, the real combination of technology and practical.

Product performance:

• Support 1.D,2.D bar code printing

• While compatible with Windows, Linux, Android and IOS systems

• Super battery life, with smart power saving and power consumption control functions , to ensure longer print time

• Support USB, COM and Bluetooth communications

• Support sound and light reminder when lack of paper, printing abnormal

• Anti fall of 1.5M cement floor

Application:

Warehousing, transportation, logistics, supermarket, tobacco, hydro power reading, mobile government affairs, mobile police, postal and other industries

• Printing Method :Thermal

• Line Resolution: 8 dots/mm, 576 dots/line

• Effective Printing: Width 72mm

• Printing Speed :80mm/s

• Character Set :ASCII,GB18030(Chinese), BIG5 Print Font ANK: 12 x 24 Chinese: 24 x 24

• Self-defined Character: Yes

• Barcodes :1D:UPC-A, UPC-E, EAN-13, EAN-8,CODE39,  ITF25 ,CODE BAR, CODE93, CODE128  2D:PDF417, QR code, DATA Matrix Graphic

• Support bitmap downloading SDK Symbian/Windows Mobile/Android/iOS Driver Windows XP/Vista/7/8/8.1/10,

• Paper End Sensor: Yes

• Black Mark Location: Yes

• Auto Sleeping: Yes

• Buzzer: Yes

• Interface: USB+Bluetooth

• Battery: 2200mAh/7.4V

• Charger: DC 8.4V/1A TPH 50km

• Paper Type: Thermal paper Width 79.5± 0.5mm

• Paper Thickness: 0.06 to 0.08mm

• Paper Roll Diameter:50mm(Max.)

• Paper Supply Method :Drop-in Easy

• loading Paper Cutting Method

• Manual Operating Temp/Humidity 0-50°C/10%-80%

• Storage Temp/Humidity -20-60°C / 10%-90%

• Dimension (LxWxH) 125*114*58mm

• Weight 0.33kg（Net weight）/0.73kg（Including packing）
